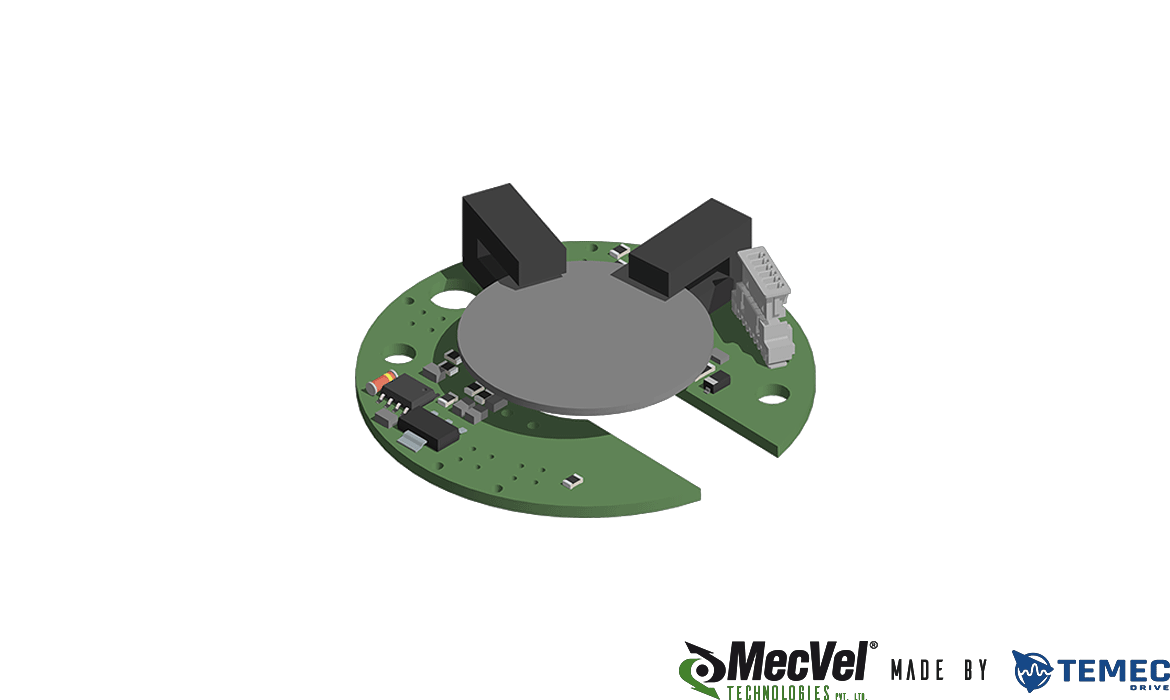

Optical incremental encoder

  • For brushed DC motors
  • 5 V DC to 24 V DC power supply
  • 2 channels at 90° ±20° (electrical)
  • Open collector outputs, max 5 mA, 1.5 kHz
  • 2-4-8-12-24 pulses per round
Technical data
Specifications
