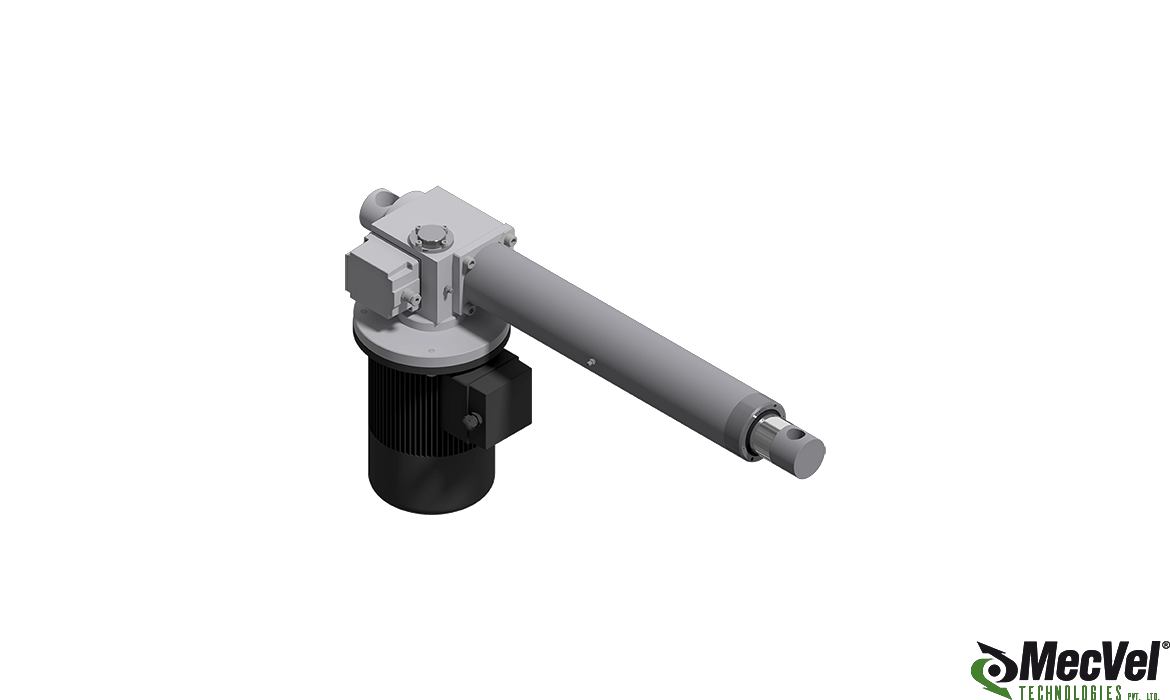

ECV9092
- AC motor, flange B5
- Worm gearbox
- Acme screw or ball screw (VRS)
- Chrome plated steel push rod
- Grease lubricated
- IP 65 tested according to CEI EN 60529 (only for brake motors: standard IP 54, IP 65 on request)
- Working temperature range: -10° C +60 °C
- Intermittent duty S3 30% (5 min.) at 30° C
- Limit switches, potentiometer and encoder on request
Technical data
Max force: 40.000 N
Max speed: 45 mm/s
Motor: AC
Max speed: 45 mm/s
Motor: AC
